Electric Motor Multiphysics Design
Electromagnetic-Thermal Combined Analysis
KEY ASPECTS
WHY IT MATTERS
Peak operating point and continuous performance are two key aspects of an electric motor design: the former allows to know how long a specific operating point is thermally sustainable, for example in case of peak torque request, the latter points to the operating conditions that are continuously sustainable by the electric motor.
Thus, it is very important that the behaviour of the Electric Motor driving the application is simulated as much accurately as possible, in order not to exceed the maximum sustainable temperatures of all the materials involved.
In this regard, the thermal behaviour of the electric motor highly depends on its power losses variation, which in turn depend on the electric motor temperatures evolving during the defined cycle: a close link between electromagnetic and thermal behaviours is therefore mandatory - thus multiphisics simulation approach is required.

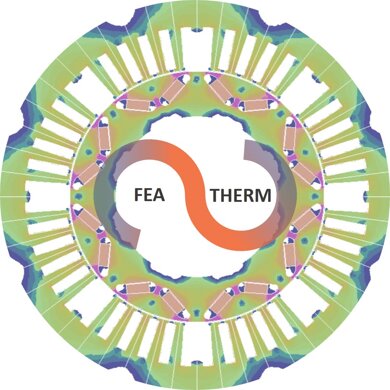

Peak operating point & continuous performance of Electric Motor Co-simulation of electromagnetic and thermal behaviours in the same working environment
WHAT WE CAN DO
We can accurately simulate the behaviour of the electric motor during any operating point by adjusting its power losses distribution based on the evolving temperatures of the electric motor itself:
- copper temperatures
- magnets temperature
Moreover, dependencies on battery voltage, inverter current and inverter switching frequencies are also taken into account.
The “co-simulation” is entirely run on a Matlab-Simulink environment, leading to results that are accurate, quick to achieve and easy to integrate with other toolchain sections.
We can to integrate electromagnetic results from Best-In-Class softwares and thermal parameters from Best-In-Class thermal networks – keeping high accuracy of results and improving simulation velocity.
GENERATED VALUE
Achieving this level of precision requires advanced tools capable of accurate electromagnetic and thermal analyses. Also managing system level and integration tools allow to integrate results from Best-In-Class software output. Here are some of the leading solutions trusted by engineers worldwide:
MoBeLIV is your R&D partner from the idea to the prototype
MoBeLIV focuses from idea generation (or pre-concept) to an A-sample, proven for the key features, increasing the likelyhood of further implementation. Our skills can also be used with other experts for later product stages, such as upgrades, optimization, and minor improvements for the next generation.
We believe in holistic approach combining both deep technical skills & management competences. With our multidisciplinary team, we offer strategic, technological, and engineering consulting for e-Mobility and mechatronic projects, providing both hardware and software solutions.
